The Anatomy of a Basic Car Wiring Diagram
A basic car wiring diagram is not merely a map of wires; it is a strict technical schematic detailing the 12V DC electrical architecture of a vehicle. For automotive technicians and restoration experts, understanding these diagrams requires moving beyond simple continuity testing and mastering the underlying specifications of wire gauges, insulation types, terminal designations, and connector topologies. Whether you are troubleshooting a parasitic draw on a late-model SUV or designing a custom harness for a classic truck, the foundational rules of automotive electrics remain governed by strict industry standards.
At its core, every basic car wiring diagram is divided into distinct sub-circuits: the primary power distribution (battery and alternator), the ignition and starting logic, the lighting network, and the accessory/ECU sensor grids. Each of these networks operates under specific amperage loads, requiring precise American Wire Gauge (AWG) sizing to prevent voltage drop and thermal degradation. According to the SAE J1128 Low Tension Primary Cable Standard, automotive wire must withstand extreme under-hood temperatures, chemical exposure, and mechanical vibration, which dictates the use of cross-linked polyethylene (XLPE) or polyvinyl chloride (PVC) insulation.
Primary Circuit Classifications & AWG Specifications
When reading a basic car wiring diagram, the thickness of the line often correlates to the wire gauge. Heavy-gauge wires handle the bulk current from the alternator to the battery and the main fuse block, while lighter gauges handle logic signals and low-draw accessories. Below is a technical specification chart detailing standard OEM wire sizing for foundational automotive circuits.
| Circuit Classification | Typical AWG Size | Max Continuous Amperage | Standard OEM Color Code | Primary Fuse Class |
|---|---|---|---|---|
| Alternator to Battery Main | 4 AWG to 1/0 AWG | 150A - 250A | Red or Black (with fusible link) | Mega / ANL Fuse |
| Starter Motor Engagement | 10 AWG to 12 AWG | 30A - 40A (Solenoid) | Yellow or Red/White | Maxi / J-Case |
| Headlight High/Low Beam | 14 AWG to 16 AWG | 15A - 20A | Red/Blue, Green/White | ATO / Mini Blade |
| ECU Power & Ground | 16 AWG to 18 AWG | 10A - 15A | White/Red (Pwr), Black (Gnd) | Micro2 / Mini |
| Sensor Logic (MAF, O2, TPS) | 20 AWG to 22 AWG | < 2A | Gray, Violet, Signal Shielded | ECU Internal FET |
Using undersized wire in any of these circuits results in excessive resistance. For example, running a 15A headlight circuit through 18 AWG wire over a 10-foot run will generate a voltage drop exceeding 0.8V, significantly reducing lumen output and generating unwanted heat within the harness bundle.
Decoding Schematic Symbols and DIN 72552 Standards
Most global automotive manufacturers, particularly European and Asian OEMs, structure their basic car wiring diagrams around the DIN 72552 standard. This standard assigns specific numerical terminal designations to switches, relays, and ignition components, allowing technicians to identify circuit functions without relying solely on wire colors, which can vary between model years.
Standard DIN 72552 Terminal Reference
- Terminal 30: Direct battery positive (B+). Hot at all times.
- Terminal 15: Ignition switch ON (Run). Powered only when the key is in the ON or START position.
- Terminal 50: Starter motor control. Powered only during the START crank position.
- Terminal 31: Direct battery negative (Ground / Earth).
- Terminal 58: Parking and tail lights. Powered via the headlight switch.
- Terminal 87: Relay normally open (NO) output contact.
- Terminal 87a: Relay normally closed (NC) output contact.
- Terminal 85 & 86: Relay electromagnetic coil control and ground.
By memorizing these terminal designations, you can instantly interpret a basic car wiring diagram's relay logic. If a fuel pump relay schematic shows Terminal 30 receiving power from the battery, Terminal 86 receiving a ground signal from the ECU, and Terminal 87 routing to the fuel pump, you immediately understand the switching logic without tracing the entire harness.

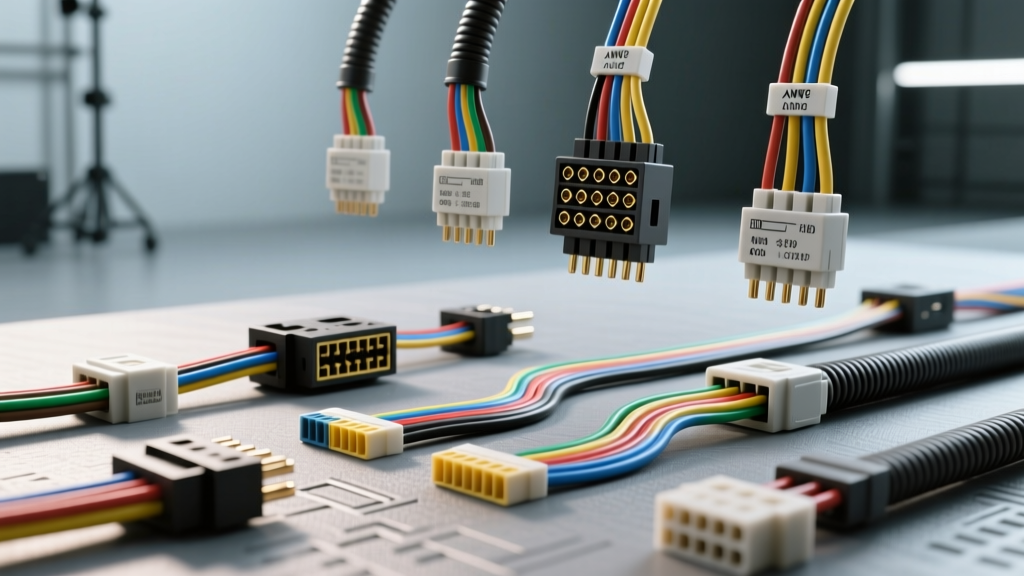

Connector Architectures in Basic Wiring
A schematic is only as reliable as its physical connections. Modern basic car wiring diagrams will specify connector cavities and series types. The most prevalent sealed connector families in automotive applications include the Delphi (now Aptiv) Weather-Pack and Metri-Pack series, as well as TE Connectivity's Deutsch DT lines for heavy-duty and motorsport applications.
Weather-Pack Connectors: Recognizable by their cylindrical, ribbed seals and open-barrel F-crimp terminals. These are typically used in high-current, high-vibration environments like engine bays and exterior lighting. They support wire ranges from 20 AWG up to 10 AWG and utilize silicone secondary locks (TPA - Terminal Position Assurance) to prevent terminal back-out.
Metri-Pack 150/280: These are the industry standard for ECU pinouts, sensor connections, and interior cabin wiring. The '150' and '280' refer to the width of the terminal blade in hundredths of an inch (1.5mm and 2.8mm). They feature pull-to-seat or push-to-seat silicone seals and are highly resistant to moisture intrusion. When repairing a Metri-Pack circuit identified on a wiring diagram, technicians must use the exact cavity-size plug and seal; mismatching a 150-series seal in a 280-series cavity will compromise the IP67 waterproof rating.
Grounding Topologies: The Hidden Half of the Circuit
Every basic car wiring diagram relies heavily on ground nodes, typically designated with a 'G' followed by a three-digit number (e.g., G101, G204). The first digit usually indicates the general vehicle zone (1 = Engine Bay, 2 = Cabin/Instrument Panel, 3 = Rear/Trunk). Modern vehicles utilize a 'star grounding' topology for sensitive ECU and sensor circuits to prevent ground loops and electromagnetic interference (EMI). In a star ground, multiple low-current sensors share a single, heavy-gauge ground wire back to the battery negative or engine block, rather than daisy-chaining from sensor to sensor. When diagnosing erratic sensor data, always verify the specific ground node listed on the diagram for corrosion or loose fastener torque (typically 8-12 Nm for M6 ground studs).
Diagnostic Workflows for Basic Circuits
When a basic car wiring diagram indicates a failure in a specific branch, the most accurate diagnostic method is the voltage drop test, as endorsed by AutoShop101 Electrical Systems training. Unlike resistance testing, which requires disconnecting the circuit and can yield false positives from digital multimeter (DMM) lead resistance, voltage drop testing is performed on a live, loaded circuit.
Acceptable Voltage Drop Thresholds:
- Power Side (Terminal 30 to Component): Maximum 0.1V drop per connection/switch.
- Ground Side (Component to Terminal 31): Maximum 0.2V drop.
- Heavy Cable (Alternator/Starter): Maximum 0.5V total drop across the entire cable length.
If your DMM reads 1.4V on the ground side of a headlight circuit, the diagram will guide you to the specific G-node. The excessive voltage drop indicates high resistance at that ground point, causing the headlight to operate at a reduced voltage (e.g., 10.6V instead of 12.6V), resulting in dim output and premature filament failure.
Summary of Technical Best Practices
Interpreting a basic car wiring diagram requires a synthesis of electrical theory and OEM-specific hardware knowledge. Always verify wire gauges against SAE J1128 amperage charts, respect DIN 72552 terminal logic when testing relays, and utilize precise voltage drop testing to validate the physical integrity of the schematic's design. By treating the diagram as a strict engineering document rather than a simple visual guide, technicians can achieve faster, more accurate electrical diagnostics and repairs.
