The Critical Role of the MAF Sensor Wiring Harness in EFI Systems
Mass Air Flow (MAF) sensors serve as the primary load-calculating devices in both dedicated MAF-driven and blended speed-density Electronic Fuel Injection (EFI) systems. Unlike robust digital CAN-bus networks, traditional analog MAF sensors output a continuous 0-5V DC voltage, while others utilize a pulse-width modulated (PWM) frequency signal. Because these signals operate in the millivolt-to-low-voltage range, the MAF sensor wiring harness is highly susceptible to Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI).
A poorly constructed, improperly shielded, or degraded MAF harness will induce idle surges, false lean codes (P0171/P0174), erratic fuel trims, and severe hesitation under load. In engine swap scenarios—such as dropping a GM LS3 or Ford Coyote 5.0L into a classic chassis—fabricating or adapting the MAF pigtail is often where the most critical electrical errors occur. This technical deep dive explores the exact pinouts, wire gauge requirements, shielding topologies, and terminal crimping standards required to build a noise-free MAF sensor wiring harness.

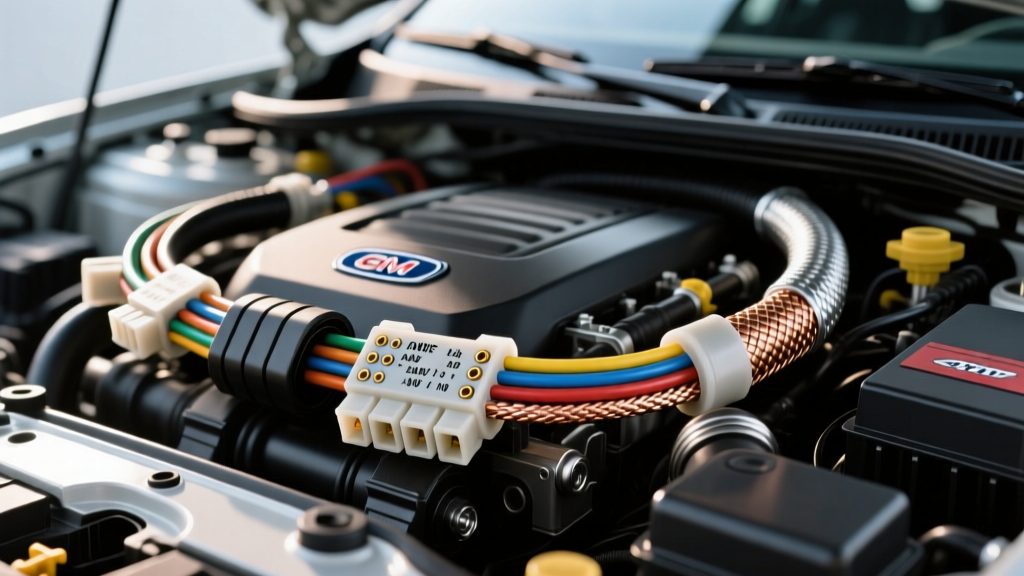

Anatomy of a High-Performance MAF Harness
Before examining specific OEM pinouts, it is vital to understand the physical construction requirements of a MAF harness. According to SAE International J1128 Standard for low-tension primary cable, automotive wiring must withstand extreme thermal cycling and chemical exposure. However, MAF harnesses require additional considerations:
- Wire Gauge (AWG): Signal wires (MAF and IAT) should be 20 AWG to 22 AWG stranded copper. Power (12V) and Ground circuits should be 18 AWG to minimize voltage drop.
- Shielding Topology: Analog MAF signal wires must be wrapped in a metallic foil or braided shield. This shield must include a 22 AWG stranded tinned copper 'drain wire' to route induced EMI away from the signal core.
- Connector Systems: GM applications predominantly use Delphi Metri-Pack 150 or 280 series connectors, while Ford applications often utilize Ford PT1212 or Denso/Bosch specific sealed housings.
GM LS/LT 5-Pin MAF Sensor Harness Pinout (Hitachi/Delphi)
The 5-pin MAF sensor, commonly found on GM LS2, LS3, LS7, and early LT1 engines, integrates the Intake Air Temperature (IAT) sensor into the same housing. The connector is a Delphi 5-way sealed system. Below is the definitive pinout and wire specification chart for this harness.
| Pin | Function | Standard OEM Wire Color | AWG | Circuit Notes |
|---|---|---|---|---|
| A | MAF Signal | Dark Green or Tan | 20 | Analog 0-5V output to PCM. Requires dedicated shield. |
| B | IAT Signal | Tan/White Stripe | 20 | Thermistor signal. High impedance, susceptible to noise. |
| C | Sensor Ground | Black/White Stripe | 20 | Dedicated PCM low-reference ground. Do not tie to chassis. |
| D | Ignition 1 Voltage | Pink | 18 | Switched 12V. Must have < 0.2V drop under cranking. |
| E | IAT Low Reference | Black | 20 | Shared 5V reference return path for IAT thermistor. |
Expert Note: On boosted LS applications, the IAT signal (Pin B) becomes incredibly sensitive to alternator whine. If you are fabricating a custom harness for a supercharged or turbocharged LS, route Pins A and B in a separate loom from the ignition coil power wires.
Ford Coyote 5.0L 6-Pin MAF Harness Configuration
The 2011-2017 Ford Coyote 5.0L utilizes a 6-pin Denso/Bosch style MAF sensor. Unlike the GM system which uses a simple analog voltage, many Ford MAF sensors utilize a frequency-based (PWM) output, which is inherently more resistant to amplitude-based EMI but still requires strict shielding to prevent frequency distortion. For detailed sensor operational parameters, refer to Bosch Motorsport Sensor Technical Documentation.
| Pin | Function | Standard OEM Wire Color | AWG | Circuit Notes |
|---|---|---|---|---|
| 1 | MAF Shield (Drain) | Bare / Shield Wire | 22 | Grounded at PCM ONLY. Never at the sensor. |
| 2 | MAF Signal | Light Blue / Red | 20 | Frequency output (Hz). Highly sensitive to capacitance. |
| 3 | IAT Signal | White / Red | 20 | Thermistor signal return. |
| 4 | SIG RTN (Reference Ground) | Grey / Red | 20 | Shared analog return for MAF and IAT. |
| 5 | VREF (5V Reference) | Brown / White | 20 | Supplied by PCM. Must read exactly 5.0V +/- 0.05V. |
| 6 | VPWR (Battery Voltage) | Yellow / White | 18 | Constant or switched 12V depending on ECU strategy. |
Advanced Troubleshooting: EMI, Ground Loops, and Signal Noise
The most common failure mode in aftermarket MAF sensor wiring harnesses is the improper termination of the shield drain wire. This results in a ground loop.
The Drain Wire Rule
The metallic shield surrounding the MAF signal wire is designed to act as a Faraday cage, absorbing RFI from ignition coils, alternators, and fuel injectors. The drain wire is used to route this absorbed energy to ground. You must ground the drain wire at the PCM (ECU) side only.
If you ground the shield at both the PCM and the sensor connector, you create an antenna loop. The engine block and the PCM chassis often sit at slightly different electrical potentials due to high-current loads (like starter motors and fuel pumps). This potential difference causes current to flow through the shield. Through parasitic capacitance, this noise is induced directly into the MAF signal wire, causing the PCM to read phantom air flow, resulting in erratic short-term fuel trims (STFT).
Identifying Harness-Induced MAF Noise
To diagnose a harness-induced MAF fault without replacing the sensor:
- Connect an oscilloscope to the MAF signal wire at the PCM connector (back-probe).
- Start the engine and let it idle.
- Observe the waveform. An analog MAF should show a relatively flat DC line with minor ripple. A PWM MAF should show a clean, consistent square wave.
- Rev the engine or turn on high-draw accessories (cooling fans, headlights).
- If you see 'hash' or high-frequency spikes superimposed on the baseline signal that correlate with alternator RPM, your harness shield is compromised, or the drain wire is improperly grounded.
Fabricating and Repairing MAF Pigtails: Best Practices
When repairing a melted connector or extending a harness for an engine swap, the physical termination of the wire to the terminal is critical. The environment around the MAF sensor (typically mounted on the intake tube) is subject to high-frequency vibration.
Open-Barrel Crimping vs. Soldering
Never solder wires directly into Delphi Metri-Pack or Denso MAF terminals. Solder wicks up into the stranded wire via capillary action, creating a rigid, brittle point exactly where the wire enters the terminal. Engine vibration will cause the wire to fatigue and micro-fracture at this rigid flex point, leading to intermittent open circuits that throw MAF low-voltage codes (e.g., P0102).
Instead, use open-barrel crimping with a ratcheting crimp tool (such as the Delphi 12094428 or equivalent). An open-barrel crimp features two sets of wings: the conductor crimp (which bites into the bare copper strands) and the insulation crimp (which grips the wire jacket to provide strain relief). When executed correctly, the copper strands cold-weld together, maintaining flexibility and superior tensile strength.
Heat Shrink and Environmental Sealing
MAF connectors utilize silicone cavity plugs and perimeter seals to prevent moisture ingress. When replacing a pigtail:
- Use dual-wall adhesive-lined heat shrink over the wire-to-terminal transition.
- Ensure the silicone cavity plug is fully seated in the back of the connector housing. A missing cavity plug will allow water to track along the wire insulation directly into the PCM or sensor pins, causing galvanic corrosion and green verdigris buildup on the copper terminals.
Voltage Drop Testing the MAF Harness
Before condemning a MAF sensor that reads low at high RPM, perform a voltage drop test on the harness power and ground circuits. A MAF sensor requires a stable 12V supply and a near-zero resistance ground to calibrate its internal bridge circuit accurately.
- Set your digital multimeter to DC Volts.
- Place the positive probe on the battery positive terminal and the negative probe on the MAF connector's 12V supply pin (back-probed with the connector mated and engine running).
- A reading higher than 0.3V indicates excessive resistance in the power wire (often due to undersized AWG or corrosion in an intermediate splice).
- Repeat for the ground circuit: Positive probe on the MAF ground pin, negative probe on the battery negative terminal. A reading above 0.1V indicates a poor PCM ground or a shared ground circuit overloaded by other sensors.
By adhering to strict AWG sizing, implementing single-point shield grounding, and utilizing proper open-barrel crimping techniques, you can eliminate the vast majority of MAF-related drivability issues inherent in custom engine swaps and aging OEM wiring harnesses.
